Functional Features

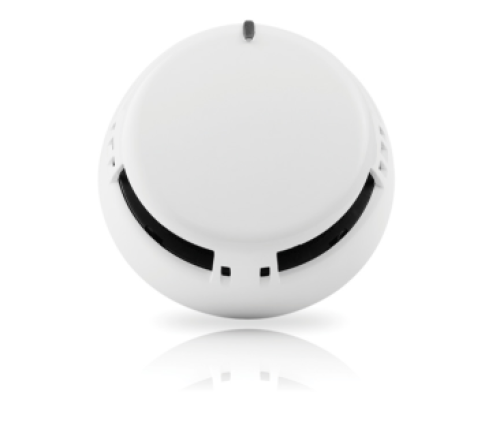

IThe OneDetector Multi-Criteria Dual Optical and Thermal detector is the latest in smoke detector technology. The first ever detector approved with three standards EN54-5, EN54-7 and EN54-29. Part 29 is the new standard of Fire Detectors defining the requirements for multiple sensor detectors.

The OneDetector ensures an analysis of air condition and temperature of the protected area, and immunity to false alarms utilising the dual-path optical smoke detection technologies and algorithms designed for the EN54-29 for improved performance.

The 360° visible LED with three different colours signals a condition of alarm (red), fault (yellow) and localization (green).

Each detector is provided with an integrated isolator circuit, that automatically takes action. The address can be programmed by the touch-screen digital programmer or with the addressing function of Teledata panels. It is provided with tools for base numbering and locking pin against unwanted removal to provide the highest level of safety and system reliability.

Technical Features

1. Low profile thermal and thermovelocimetric smoke detector to be combined with ONEBASE
2. Thermovelocimetric function at 58°C
3. Thermal function at 78°C
4. Built with multicolored plastic material, modern design.
5. It can be programmed to operate at 58°C or 78°C
6. Built with ABS plastic material with stabilized UV,
7. Modern and compact design, low aesthetical impact
8. Integrated self adapting function, to suit environmental changes
9. Remote LED control option
10. Power supply: 18-35V • Average current consumption: 90 μA
11. IP40 degree of protection
12. Maximum current consumption remote LED: 15mA
13. Operating temperature: –30°C + 70°C
14. Max humidity: 95% non-condense • Height: 48mm with base
15. Diameter: 92mm • Weight with base: 120g
